Z100qx Loki

The Z100qx Loki is a 4-port 100GE test module with 4 QSFP28 ports that can also test 50GE, 40GE, 25GE and 10GE.

データシートのダウンロード

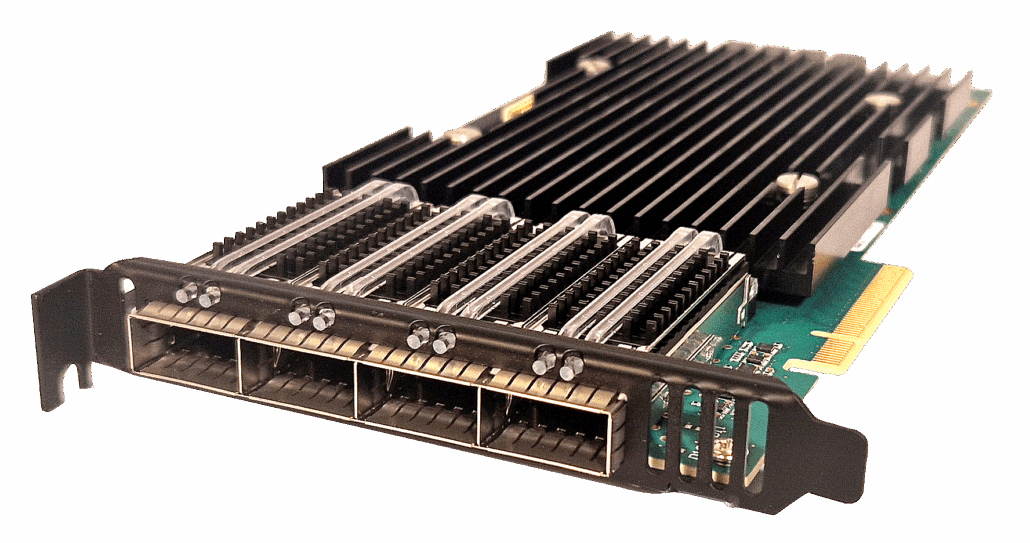

Z100qx Loki 4-port 100G Ethernet traffic generator



The Z100qx Loki is a 4 port Ethernet traffic generator capable of testing five NRZ speeds: 100GE, 50GE, 40GE, 25GE and 10GE.

This flexibility is provided via 4 physical transceiver cages, supporting QSFP28 transceivers.

The Z100qx Loki is available in a single-slot 1U Compact chassis, or in the modular B2400 chassis.

Users can configure up to 36 Loki 100G ports in a single B2400 chassis (i.e. 9 x Z100qx), or combine it with Odin, Loki, Thor and Freya traffic generators in the same chassis for unmatched convenience and flexibility.

The result is a versatile solution for performance and functional testing of network infrastructure and Ethernet equipment such as chips, switches, routers, NICs, taps, transceivers, cables, packet-brokers, and backhaul platforms.

Included with the Z100qx Loki is XenaManager3 (XM3), the intuitive multi-user management software for generating and analyzing traffic. XenaManager makes it easy to configure and conduct complex testing across single or multiple systems from the same interface.

Xena OpenAutomation (XOA), an open-source Python Test Suite, which include XOA Core and test suite plugins is also provided. This comprehensive Python framework offers developers and test specialists well-defined APIs. With XOA Python Test Suites, developers and test specialists can easily harness the power of Xena test systems and effectively handle the configuration and control of the testing equipment making the most of Xena testers with tailored tests and standardized test methodologies like RFC2544, RFC2889 and RFC3918.

当社のソフトウェアのガイドツアーをご希望ですか？

ソフトウェアの無料ガイドツアーにご参加ください。すべての機能をご覧いただけるほか、ご質問にもお答えします。


オンラインミーティングを予約する デモをお試しください

仕様

Interface and Standards

  1. Number of module cages/connectors

    4 x QSFP28/QSFP+

  2. Interface options in each cage

    • 1 x 100GBASE-SR4/LR4/CR4 (802.3bj)
    • 2 x 50GBASE-SR2/LR2/CR2 (ETC 25/50G)
    • 1 x 40GBASE-SR4/LR4/CR4 (802.3ba)
    • 4 x 25GBASE-SR/LR/CR (802.3by or ETC 25/50G)
    • 4 x 10GBASE-SR/LR/CR (802.3ae)

    Actual interface options depend on the capabilities of the inserted transceiver.

    All cages on a module run with the same interface configuration (e.g.100GE)

LAYER 1 FEATURES

  1. Pattern Generation

    • PRBS-13, PRBS-31
    • Statistics: Lock status, PRBS errors, PRBS error rate

  2. Physical Coding Sublayer

    PCS virtual lane-to-SerDes mapping configuration

  3. 前方誤り訂正（FEC）

    • RS-FEC KR (528, 514, t=7), IEEE 802.3 Clause 91 (100GE)
    • RS-FEC KR (528, 514, t=7), IEEE 802.3 Clause 108 (25GE)
    • RS-FEC KR (528, 514, t=7), Ethernet Consortium 25/50G (25/50GE)
    • BASE-R FEC (Firecode) (2112, 2080), IEEE 802.3 Clause 74 (25GE, 10GE)

  4. FEC Error Injection

    • RS-FEC KR (528, 514, t=7)
    • Configuration: Consecutive, Errored Codewords, Total Codewords Per Cycle, Errored Symbols Per Codeword
    • Bit error mask modes: Static, Rotate, Increment
    • Pre-defined profiles: Max. Consecutive Uncorrectable w/o Link Loss, Min. Consecutive Uncorrectable with Link Loss
    • Loop modes: Single, Continuous, Repeat
    • Injection statistics: Injected FEC Errors; Total Codewords, Total Uncorrectable Codewords, Total Correctable Codewords, Total Error-Free Codewords, Codeword Error Ratio, and Total Symbol Errors

  5. Reconciliation Sublayer (Local/Remote Fault feature)

    • Normal: Acts according to 802.3 standard
    • Force Local: Port will continuously transmit “Local Fault indication”.
    • Force Remote: Port will continuously transmit “Remote Fault indication” .
    • Disabled: Port does not respond to Local/Remote Fault from DUT

  6. PMA Error Injection

    Repeatable error injection periods at PMA layer with millisecond precision.

  7. リンク・フラップ

    Single shot or repeatable link-down with millisecond precision.

  8. イコライザー・コントロール

    • Tx Transmit Equalization Controls Pre-emphasis
    • TxAttenuation
    • Txポストエンファシス信号品位解析
    • Rx Optional Auto-Tune of PHY 50 & 25Gbps Rx SerDes

  9. シグナルインテグリティ解析

    BER Eye-diagram with direct visual representation of the signal quality after RX equalization

Transmit Engines

  1. トラフィック生成

    • Wire-speed multi-stream traffic generation
    • Up to 256 hardware streams per port
    • Each stream can generate millions of traffic flows using field modifier

  2. 送信ラインクロック調整

    1ppmステップで-400～400ppm（全ポートで共有）

  3. Oscillator Characteristics

    • Initial Accuracy is +/- 3 ppm
    • Frequency drift over 1st year: +/- 3 ppm
    • Frequency drift over over 15 years: +/- 15 ppm
    • Temperature Stability +/- 20 ppm

  4. Transmit Control

    • Support adjustment of the effective line rate by forcing idle gaps equivalent to -1000 ppm (increments of 10 ppm)
    • Configurable Inter-Frame Gap (IFG) from 16 to 63 bytes, default is 20B (12B IFG + 8B preamble)
    • Support optical laser or copper link enable/disable

  5. Loopback Modes

    • L1 RX-to-TX：受信したパケットはすべてTX経由でバウンスバックされる。
    • TX(on)-to-RX：パケットはTXから出るが、内部的にはRXにも直接送られる。
    • TX(off)-to-TX: Packet goes directly to RX (No link sync needed)
    • Port-to-Port: Any received packet goes out through the neighbor port

  6. Port Transmit Scheduling Modes

    • Normal (stream interleaved mode): Default scheduling mode, precise rates, minor variation in packet inter-frame gap.
    • Uniform: With 100% uniform packet inter-frame gap, minor deviation from configured rates is available.
    • Sequential:  Streams are scheduled continuously in sequential order, with configurable number of packets per stream.
    • Burst: Packets in a stream are organized in bursts. Bursts from active streams form a burst group is available. The user specifies time from start of one burst group till start of next burst group.

  7. Stream Profile

    • Packet Length: Fixed; Incrementing, Random, Butterfly. Minumum 56 bytes, maximum 16K bytes.
    • Packet Payload: Incrementing 8-bit, custom pattern (up to 18B repeated)
    • Burst Traffic with configurable Burst Size, and Burst Density
    • Flow Control: PFC support for both VLAN tagged and untagged traffic

  8. Stream Header Types

    Ethernet, VLAN, ARP, IPv4, IPv6, UDP, TCP, LLC, SNAP, GTP, ICMP, RTP, RTCP, STP, SCTP, MacCtrl, MPLS, PBB, FCoE, FC, IGMPv2, GRE, GTP, VxLAN, NVGRE, DHCPv4, Geneve, eCPRI, RoE, PWE, PFC, Custom.

  9. Stream Modifiers

    • Maximum 8 x 24-bit modifiers per stream
    • 24-bit header field modifiers with incremental, decremental, or random mode.
    • Each modifier has configurable bit-mask, repetition, min, max, and step parameters.

  10. Layer 2 Error Injection

    • Undersize (56 bytes min), and oversize (12288 bytes max.) packet lengths
    • FCS Error, Sequence Error, Misordering Error, Payload Integrity Error, Test Payload Error

  11. マルチキャスト

    • Support for IPv4
    • Up to 8 multicast group addresses
    • IGMPv2: Join (with configurable repeat interval), Leave All-Devices, Leave, General Query, Group Query
    • IGMPv3: Exclude (with configurable repeat interval), Include, Change-to-Exclude, Change-to-Include, Multi-group record support

  12. ARP/NDP/Ping

    • Auto address resolution
    • Auto reply to request per port and per stream

  13. LLDP

    • Configurable LLDP operation mode, timers, and TLVs
    • Support mandatory and optional TLV types
    • Display received LLDP information

  14. 送信統計

    • Per-stream: bits/s, bytes/s, packets/s, packets, bytes
    • Per-port: ARP, NDP, Ping, requests and replies
    • Per-port injected errors: FCS Error, Sequence Error, Misordering Error, Payload Integrity Error, Test Payload Error
    • Two real-time histograms per port: TX Packet Length, IFG, or latency distribution for all traffic, a specific stream, or a filter

  15. Packet Scheduling Modes

    • ノーマル（ストリーム・インターリーブ・モード） - 標準的なスケジューリング・モード。
    • Strict Uniform – with 100% uniform packet inter-frame gap, minor deviation from configured rates is available.
    • Sequential packet scheduling (sequential stream scheduling) is available. Streams are scheduled continuously in sequential order, with configurable number of packets per stream.
    • Burst. Packets in a stream are organized in bursts. Bursts from active streams form a burst group is available. The user specifies time from start of one burst group till start of next burst group.

Receive Engine

  1. Traffic Receive Capability

    Number of traceable Rx streams per port: 2016 (wire-speed)

  2. 統計を受け取る

    • Per-stream: bits/s, bytes/s, packets/s, packets, bytes
    • Per-stream: Packet Loss, Misordered, Payload Errors
    • Per-stream: Latency and jitter with minimum, maximum and average
    • Per-port: ARP, NDP, Ping, with requests and replies
    • Per-port injected errors: FCS Error, Sequence Error, Misordering Error, Payload Integrity Error, Test Payload Error
    • Two real-time histograms per port: RX Packet Length, IFG, or latency distribution for all traffic, a specific stream, or a filter
    • Filter statistics: bits/s, bytes/s, packets/s, packets, bytes

  3. Latency Measurement

    • Latency can be measured on up to 256 streams
    • Accuracy: ±16 ns
    • Resolution: 1 ns
    • Measurement modes: Last-to-last, last-to-first, first-to-last, first-to-first
    • Can be calibrated to remove latency from transceiver modules

  4. Jitter Measurement

    • Jitter can be measured on up to 256 streams
    • Jitter (Packet Delay Variation) measurements compliant to MEF10 standard with 1ns accuracy.

  5. Traffic Filter

    • 6 x 64-bit configurable match-term patterns with mask, and offset
    • 6 x フレーム長比較項（長い、短い）
    • 6 x configurable filters expressed in logical expressions of the match and length terms

  6. フィルタ統計（カウンタサイズ：64ビット）

    Per filter:

    • RX Mbit/s
    • packets/s
    • パケット
    • bytes

  7. キャプチャ

    • Start Trigger Criteria: FCS errors, filter match, payload error, manual
    • Stop Trigger Criteria: FCS errors, filter match, payload error, manual, buffer full
    • Capture Limit Per Packet: 16 – 12288 bytes
    • Wire-Speed Capture Buffer Per Port: 256kB for 100G, 128 kB for 40G
    • Low Speed Capture Buffer Per Port (10 Mbits/s): 4096 packets (any size)
    • Packet header auto decode

SPECIFICATION

  1. マックスパワー

    • 59W

  2. 重量

    2.32 lbs (1.05 kg)

  3. 環境

    • Operating Temperature: 10 to 30ºC
    • Storage Temperature: -40 to 70ºC
    • 湿度：8%～90%（結露しないこと

  4. 規制

    • FCC (US)
    • CE (Europe)

  5. ユーザーインターフェース

    • XenaManager3 (XM3), Xena OpenAutomation (XOA) and XOA CLI
    • Xena2544, Xena2889, Xena3918, Xena1564

  6. 備考

    • The Z100qx Loki occupies 1 slot in a B2400 chassis. Up to 9 can be installed in a single B2400 chassis i.e. 36 x 100G ports in a Bay chassis
    • The Z100qx Loki is also available as a single traffic generator in a standalone Compact chassis (P/N Z100qxc Loki)

この無料ソフトウェアを含む

ソフトウェア

ゼナマネージャー

Xenaのイーサネット・トラフィック生成テスト・ソリューションのあらゆる側面を管理するための Windows ベースのアプリケーション。
ソフトウェア

ゼナ2544

Xena2544は、RFC2544に準拠したテストコンフィギュレーションの作成、編集、実行を容易にするWindowsデスクトップアプリケーションです。
ソフトウェア

ゼナ2889

Xena2889は、RFC2889に従ってレイヤー2 LANスイッチの性能を正確にベンチマークすることを容易にします。
ソフトウェア

ゼナ3918

Xena3918は、RFC3918に従って、1つ以上のXena テストシャーシを使用した高度なIPマルチキャストネットワークテストのためのWindowsデスクトップアプリケーションです。
ソフトウェア

ゼナ1564

Xena1564はWindowsデスクトップアプリケーションで、1つまたは複数のXena テストシャーシを使用して、同期イーサネットを解析し、Y.1564手法を実行できます。
ソフトウェア

エックスオーエー

Xena OpenAutomation (XOA) is an open-source test automation framework for use with the Xena Ethernet Test Platform.
